Field Density Test (Sand Cone Method) in Auckland

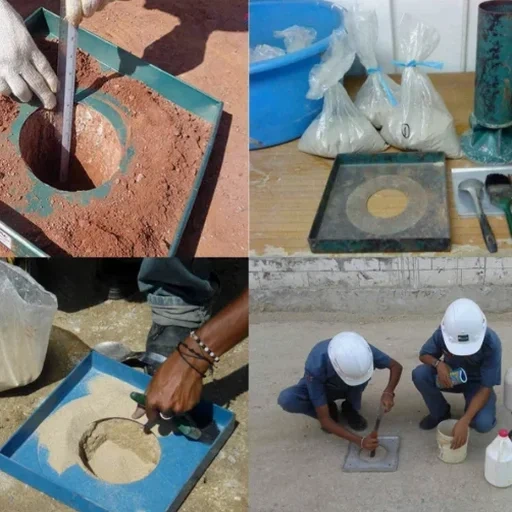

Auckland's volcanic soils and high annual rainfall create a unique challenge for earthworks contractors. The region's clay-rich subgrades, particularly around the Isthmus and North Shore, can lose density rapidly when moisture fluctuates. That is why the field density test (sand cone method) is a routine requirement on Auckland projects. Before placing pavement layers or backfilling retaining structures, teams use this in-situ test to confirm that compacted fill meets specified dry density. Combining it with a granulometry analysis helps correlate particle distribution with achievable compaction, while a CBR test validates subgrade strength for road designs across the city.

A single sand cone test can prevent differential settlement of up to 50 mm in an Auckland residential pavement.

Method and coverage

Regional considerations

A common mistake on Auckland construction sites is relying solely on nuclear gauge readings without cross-checking with the sand cone method. Nuclear gauges can give inflated density values in moist volcanic clays. If compaction is under-reported, the fill may settle under traffic loads or building weight, leading to cracked slabs and uneven pavements. Skipping the field density test on a backfilled retaining wall in Ponsonby or a road embankment in Flat Bush invites costly repairs. The sand cone method remains the benchmark for verifying density in Auckland's challenging ground conditions.

Technical data

Standards that apply

NZS 4402 – Standard Test Method for Density and Unit Weight of Soil in Place by Sand-Cone Method, NZS 4402:1986 – Methods of Testing Soils for Civil Engineering Purposes, NZTA T/1 – Specification for Compaction of Earthworks

FAQ
